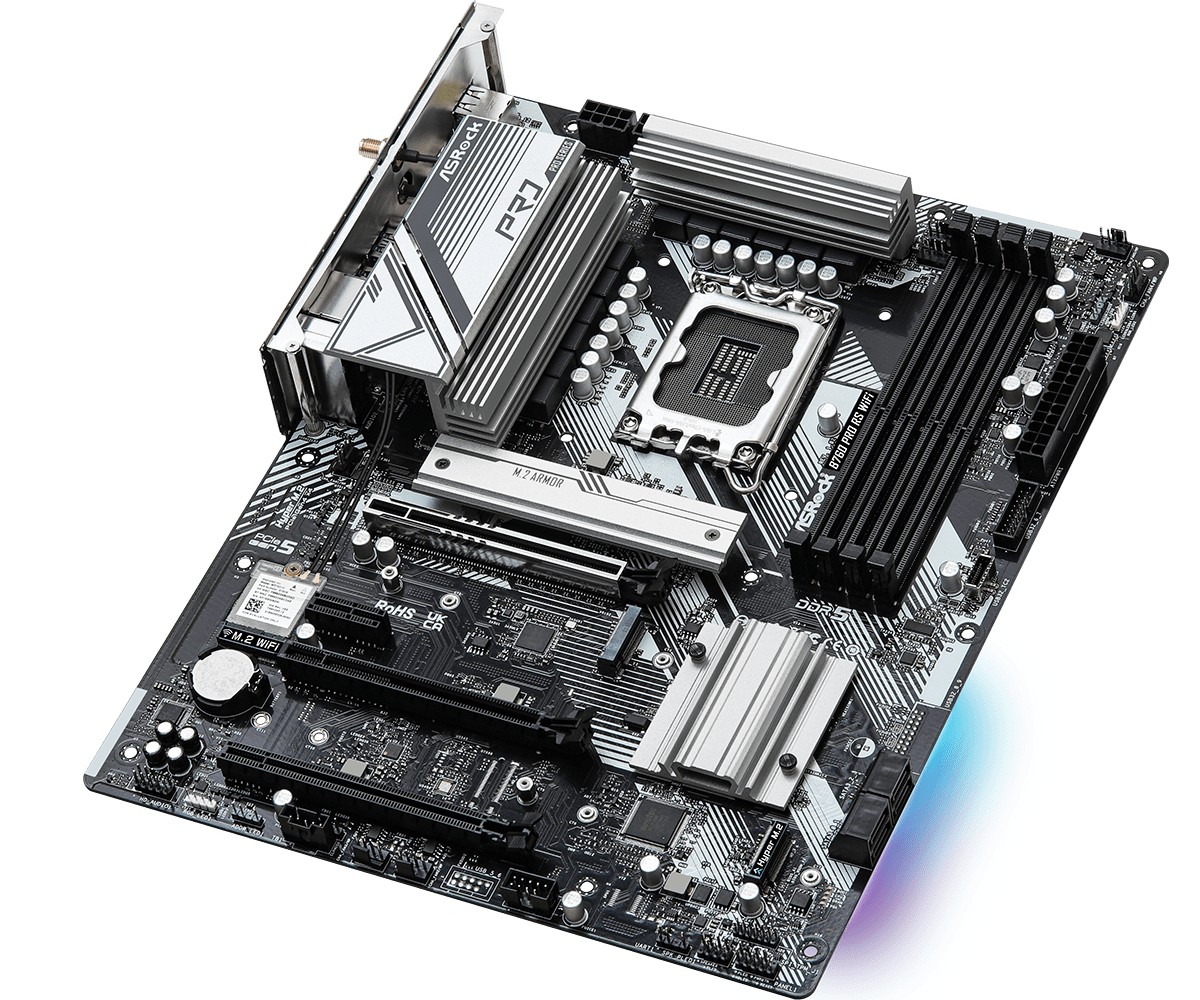

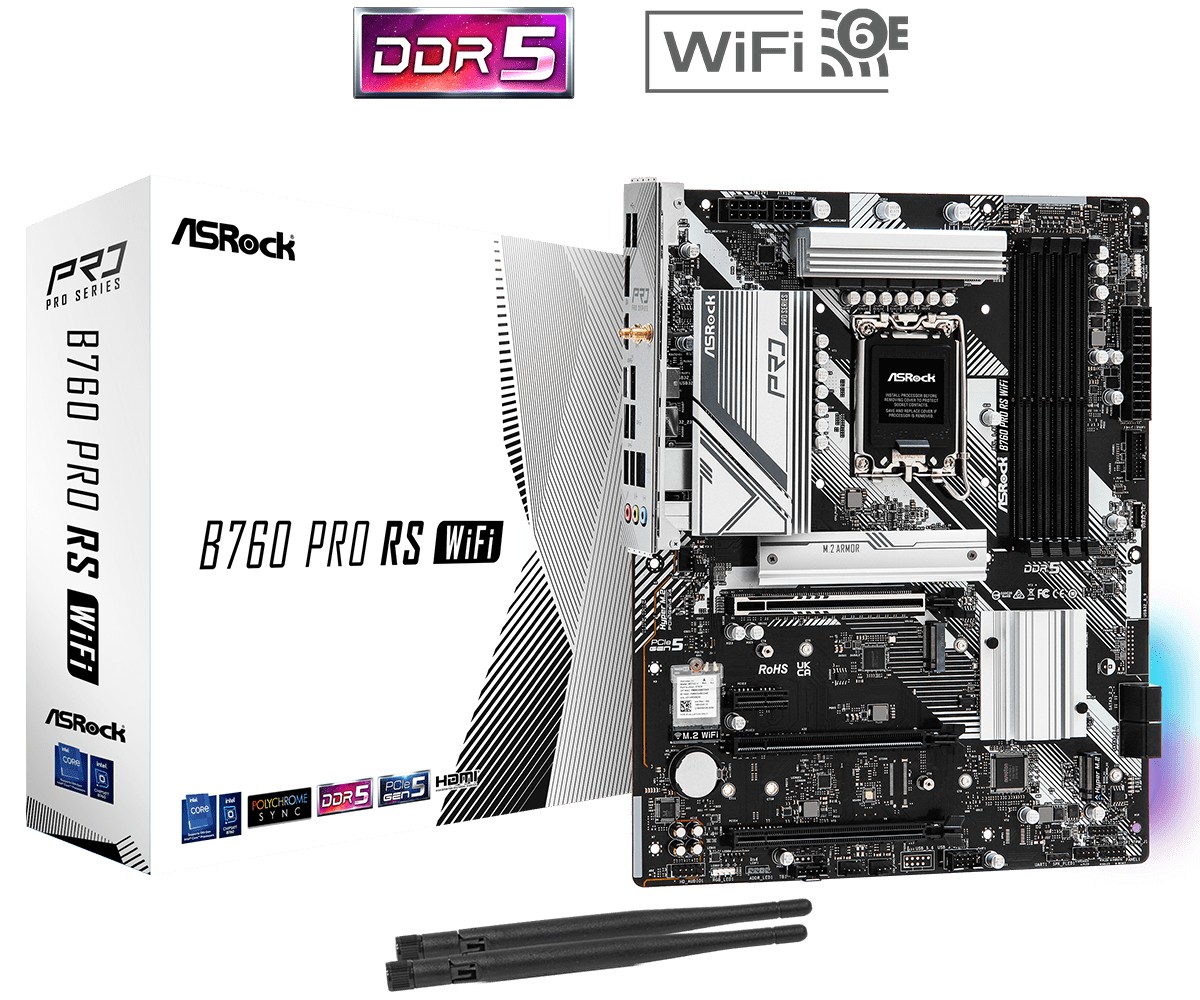

ASROCK Motherboard B760 Pro RS WIFI s1700 4DDR5 DP/HDMI M.2 ATX (B760 PRO RS WIFI)

Product images are illustrative. The original product may vary, so please refer to the product specifications in the product description.

In stock

Price

€ 145.10

The e-shop price may differ with shops price.

Points +145

Product details

EAN	4710483942815
Description	Modern and futuristic, with attractive specifications and perfect balance, the Race Sport (RS) Edition is an evolution of the most popular PRO Series motherboard.His unique path is aimed at average DIYers who provide
Model	B760 PRO RS WIFI
CPU socket	LGA1700

Show all details

Processor family	Intel Core
Integrated CPU	No
Chipset manufacturer	Intel
chipset type	Intel B760
memory type	DDR5
Number of DDR5 slots	4
Memory bus frequency	7200 MHz
Memory bus frequency	3600 MHz
Memory bus frequency	6000 MHz
Memory bus frequency	5600 MHz
Memory bus frequency	4800 MHz
Memory bus frequency	4400 MHz
Memory bus frequency	4000 MHz
max memory size	256
expansion slots	1 x M.2
expansion slots	1 x PCIe 4.0 x 16
expansion slots	1 x PCIe 3.0 x 1
expansion slots	1 x PCIe 3.0 x 16
expansion slots	1 x PCIe 5.0 x 16
Max. number of SATA devices	4
raid	Yes
Detailed data on disk/drive interfaces	CPU:- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) modeChipset:- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode- 1 x Hyper M.2 Socket (M2_3, Key M), supports t
Type of integrated graphics card	Intel Xe Graphics Architecture (Gen 12) 1 x eDP 1.4, supports max. Resolutionup to Full HD 60Hz 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. Resolutionup to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compreso
Sound card	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Network interface	Bluetooth
Network interface	1 x 10/100/1000/2500 Mbps
Network interface	Wi-Fi 802.11a/b/g/n/ac/ax
Network interface	LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics O
USB ports at back panel	8
USB ports on motherboard	5
Number of USB 3.0 ports	6
Number of USB 3.1 ports	3
FireWire (IEEE 1394)	No
COM connector / port	No
LPT connector / port	No
External connectors	4 x USB 3.2 Gen 1 Type-A
External connectors	1 x RJ-45
External connectors	2 x SMA
External connectors	2 x USB 2.0
External connectors	1 x DisplayPort
External connectors	1 x HDMI
External connectors	1 x Line In
External connectors	1 x Line Out
External connectors	1 x MIC
External connectors	1 x USB 3.2 Gen 2 Type-A
External connectors	1 x USB 3.2 Gen 2 Type-C
Onboard connectors	2 x RGB LED Strip
Onboard connectors	2 x Addressable LED
Onboard connectors	1 x Front panel audio header
Onboard connectors	1 x Power led header
Onboard connectors	5 x 4pin Chassis fan
Onboard connectors	2 x 8pin 12V
Onboard connectors	1 x 24pin ATX power supply
Onboard connectors	1 x USB 2.0/1.1 header
Onboard connectors	1 x USB 3.2 Gen 1 Type-A
Onboard connectors	1 x USB C
Onboard connectors	1 x Thunderbolt header
Onboard connectors	1 x TPM header
Onboard connectors	1 x 4pin CPU fan
Onboard connectors	1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors	1 x eDP
Special functions
bios	128Mb AMI UEFI Legal BIOS with GUI support
form factor	ATX
dimensions	30.5 cm x 24.4 cm
Accessories included	1 x Instrukcja Obsługi 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 3 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket
Supported operating systems	Windows 10
Supported operating systems	Windows 11
software	Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI
