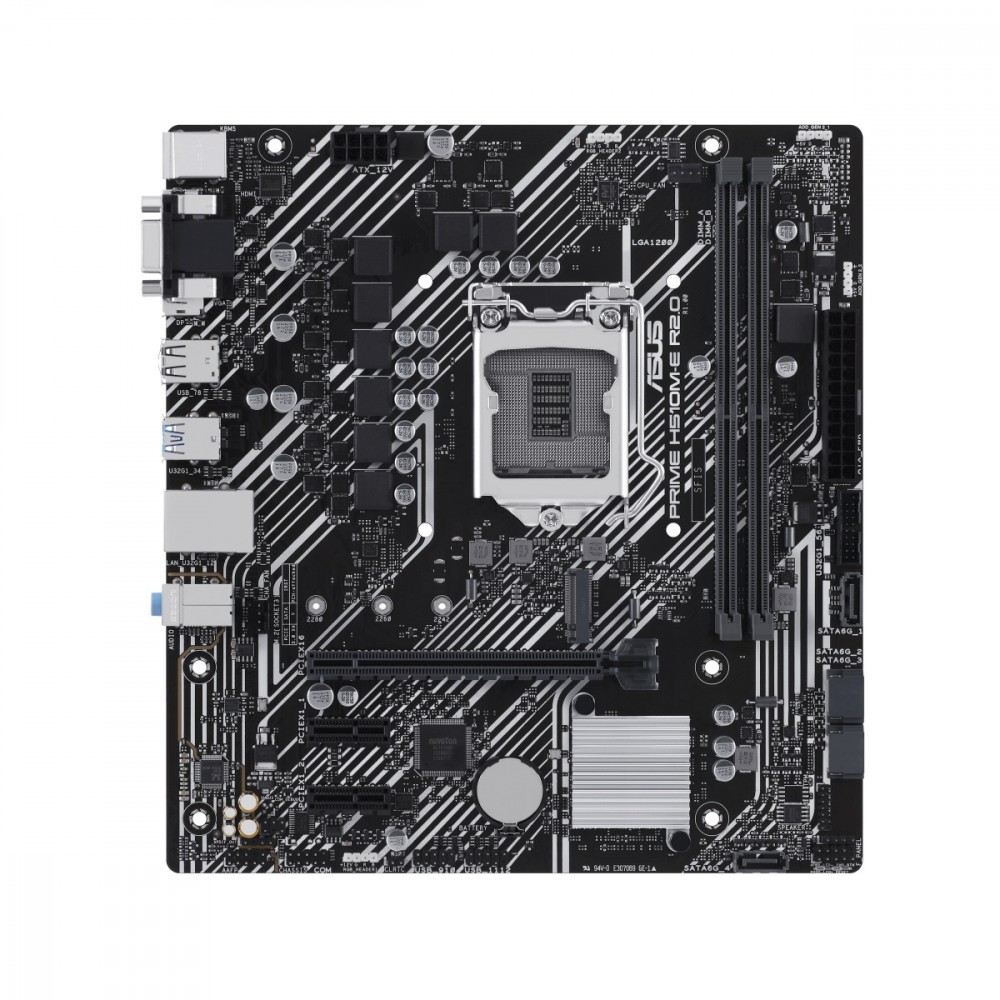

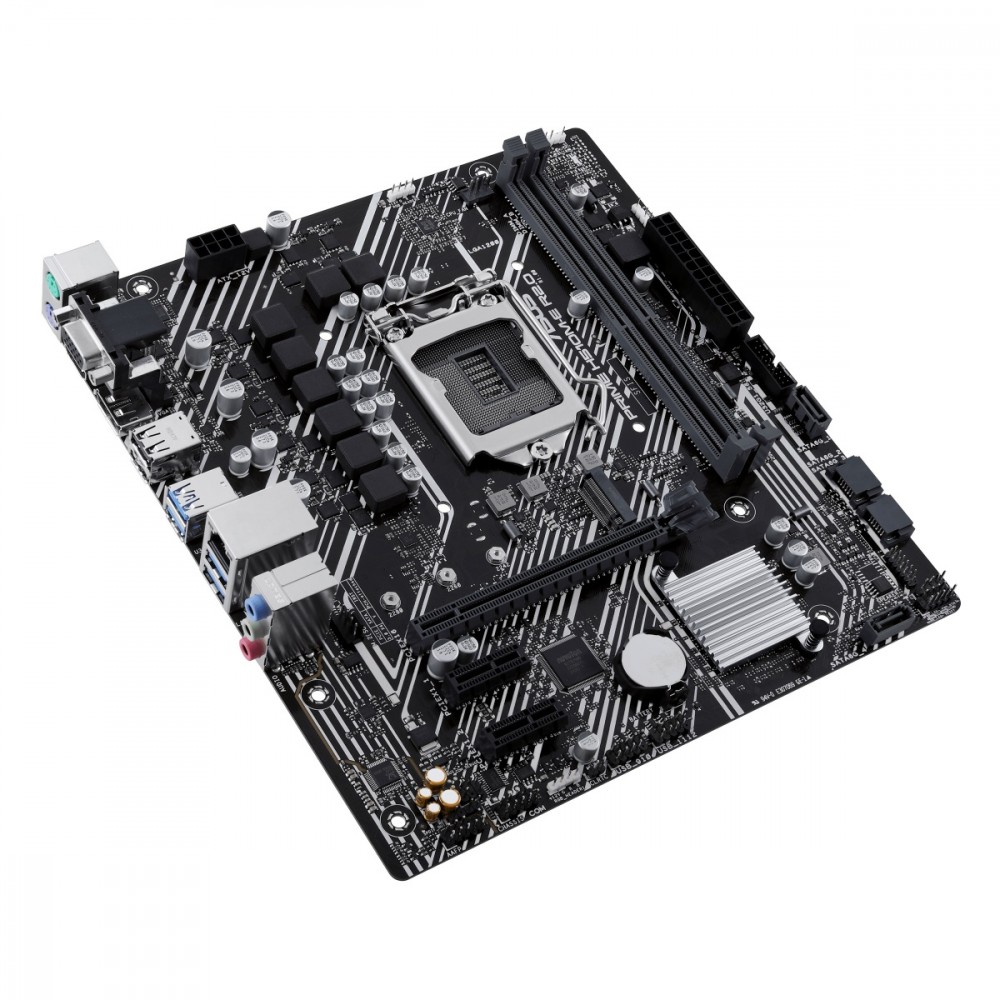

ASUS PRIME H510M-E 2.0 s1200 2DDR4 HDMI/DP M.2 mATX (PRIME H510M-E R2.0)
Product images are illustrative. The original product may vary, so please refer to the product specifications in the product description.
In stock
Price
€ 77.50The e-shop price may differ with shops price.
Points
+77
Product details
| EAN | 4711387234945 |
| Description | Intel H470 (LGA 1200) motherboard in micro ATX format with PCIe 4.0, M.2 32 Gb/s slot, DisplayPort/HDMI/VGA, USB 3.2 Gen 1 ports, SATA 6 Gb/s, AURA Gen 2 addressable headers, AURA SYNC, Armory Crate, Q-LED core Intel LG socket |
| Model | Prime H510M-E R2.0 |
| CPU socket | LGA1200 |
| Processor family | Intel Core |
| Processor family | Intel Pentium |
| Processor family | Intel Celeron |
| Integrated CPU | No |
| Chipset manufacturer | Intel |
| chipset type | Intel H470 Chipset |
| memory type | DDR4 |
| Number of DDR4 slots | 2 |
| Memory bus frequency | 2800 MHz |
| Memory bus frequency | 2400 MHz |
| Memory bus frequency | 2666 MHz |
| Memory bus frequency | 3000 MHz |
| Memory bus frequency | 2133 MHz |
| Memory bus frequency | 2933 MHz |
| Memory bus frequency | 3200 MHz |
| max memory size | 64 |
| expansion slots | 1 x PCIe 4.0 x 16 |
| expansion slots | 2 x PCIe 3.0 x 1 |
| Max. number of SATA devices | 4 |
| Max. number of ATA devices | 0 |
| raid | No |
| Detailed data on disk/drive interfaces | In total, it supports 1 M.2 slot and 4 SATA6Gb/s ports Intel H470 chipset M.2 slot (M Key), type 2242/2260/2280 (supports PCIe 3.0 x4 and SATA modes) 4x SATA 6Gb/s ports |
| Type of integrated graphics card | 1 DisplayPort 1.4 ** 1x VGA 1 x HDMITM 2.1 *** ** Intel 11th and 10th generation processors support DisplayPort 1.4 with a maximum resolution of 4096 x 2304 at 60 Hz. Any updates can be foun |
| Sound card | Realtek 7.1 Surround Sound High Definition audio codec Supports: jack detection, multi-streaming, front panel jack reassignment Supports playback up to 24-bit/192 kHz Features a |
| Network interface | |
| USB ports at back panel | 6 |
| USB ports on motherboard | 6 |
| Number of USB 3.0 ports | 5 |
| Number of USB 3.1 ports | 0 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |
| External connectors | 1 x RJ-45 |
| External connectors | 1 x MIC |
| External connectors | 1 x Line Out |
| External connectors | 1 x D-Sub |
| External connectors | 1 x DisplayPort |
| External connectors | 1 x Line In |
| External connectors | 1 x PS/2 Mouse |
| External connectors | 1 x PS/2 Keyboard |
| External connectors | 1 x HDMI |
| External connectors | 2 x USB 2.0 |
| External connectors | 4 x USB 3.0 |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x 8pin 12V power |
| Onboard connectors | 1 x 24pin ATX power supply |
| Onboard connectors | 1 x M.2 |
| Onboard connectors | 4 x SATA III 6Gb/s |
| Onboard connectors | 4 x USB 2.0/1.1 |
| Onboard connectors | 1 x USB 3.0 header |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x S/PDIF Out header |
| Onboard connectors | 1 x Clear CMOS jumper |
| Special functions | ASUS 5X PROTECTION III DIGI+ VRM LANGuard Overvoltage Protection SafeSlot Core Stainless-Steel Back I/O ASUS Q-Design Q-DIMM Q-LED Core Q-Slot ASUS |
| bios | 128 Mb Flash ROM, UEFI AMI BIOS |
| form factor | micro ATX |
| dimensions | 22.6 x 21.1 cm |
| Accessories included | |
| Supported operating systems | Windows 10 |
| software | |
| Other information |
Warranty period 36 months
