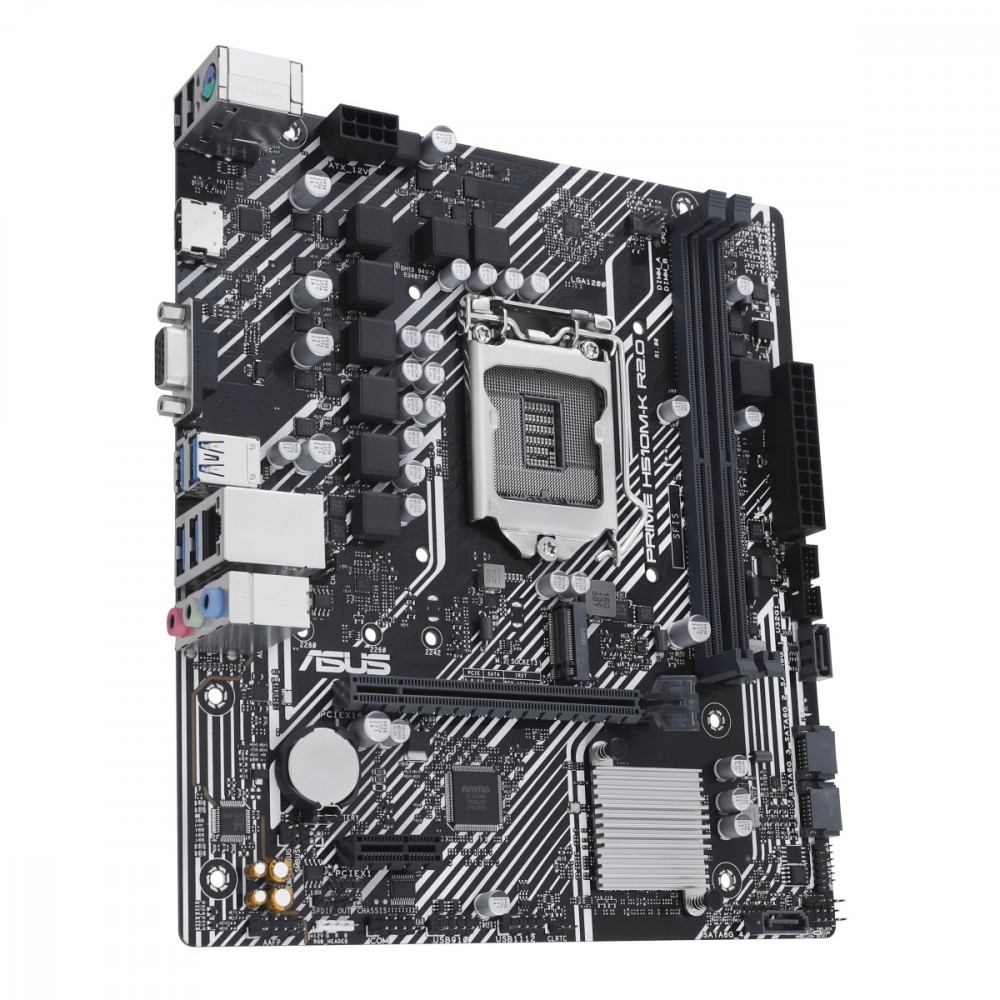

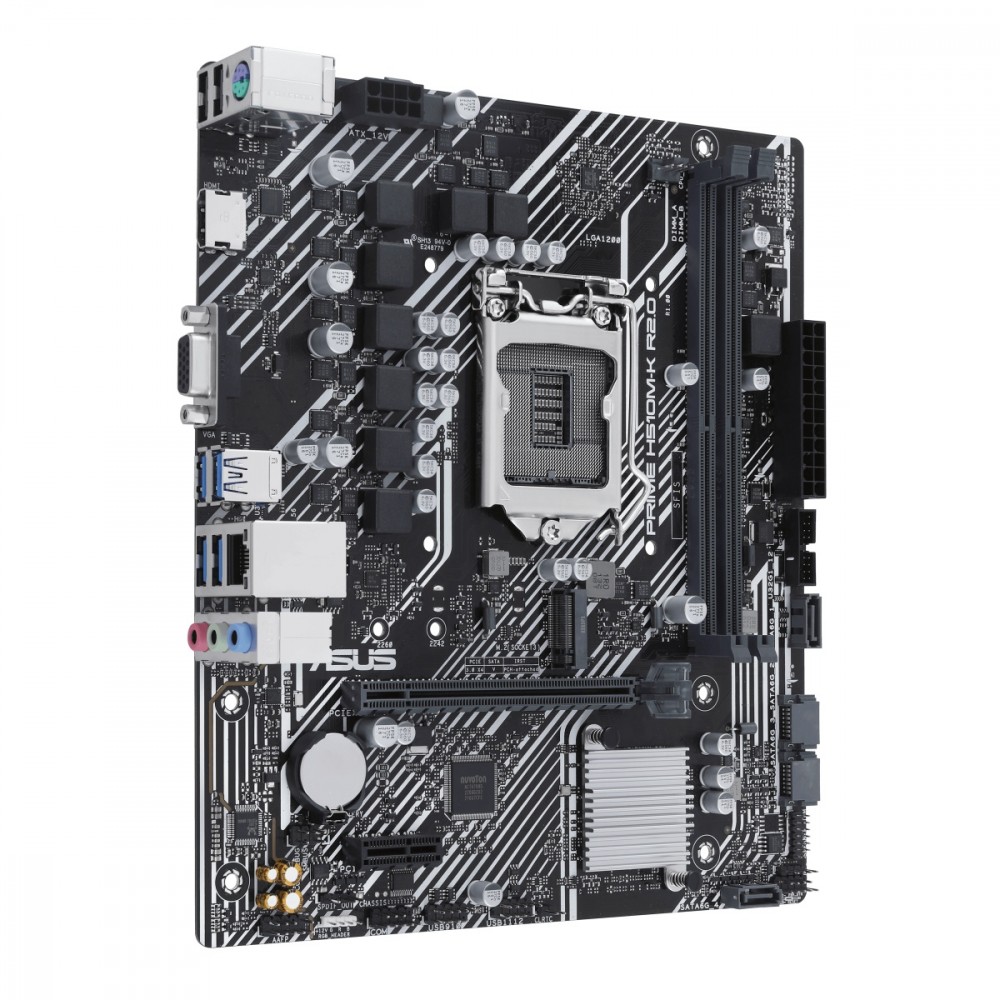

ASUS Motherboard PRIME H510M-K s1200 R2.0 2DDR4 HDMI mATX (PRIME H510M-K R2.0)
Product images are illustrative. The original product may vary, so please refer to the product specifications in the product description.
In stock
Price
€ 72.30The e-shop price may differ with shops price.
Points
+72
Product details
| EAN | 4711387113189 |
| Description | Intel H470 (LGA 1200) motherboard in micro ATX format with PCIe 4.0, M.2 32 Gb/s slot, HDMI, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gb/s, Intel Optane memory support, FAN Xpert , Armory Crate, 5X PROTECTION III Intel LGA 1200 Socket: Go |
| Model | PRIME H510M-K R2.0 |
| CPU socket | LGA1200 |
| Processor family | Intel Pentium Gold |
| Processor family | Intel Celeron |
| Processor family | Intel Core |
| Integrated CPU | No |
| Chipset manufacturer | Intel |
| chipset type | Intel H470 Chipset |
| memory type | DDR4 |
| Number of DDR4 slots | 2 |
| Memory bus frequency | 2666 MHz |
| Memory bus frequency | 2800 MHz |
| Memory bus frequency | 2933 MHz |
| Memory bus frequency | 3000 MHz |
| Memory bus frequency | 2133 MHz |
| Memory bus frequency | 2400 MHz |
| Memory bus frequency | 3200 MHz |
| max memory size | 64 |
| expansion slots | 1 x PCIe 3.0 x 1 |
| expansion slots | 1 x PCIe 3.0 x 16 |
| expansion slots | 1 x PCIe 4.0 x 16 |
| Max. number of SATA devices | 4 |
| raid | No |
| Detailed data on disk/drive interfaces | |
| Type of integrated graphics card | 1x VGA port 1 x HDMI port** *Graphics specifications may vary depending on processor type. **Only 11th Gen Intel processors support HDMI 2.1 with max. 4K resolution at 60Hz, others only support HDM |
| Sound card | Realtek 7.1 Surround Sound High Definition audio codec* Supports: jack detection, multi-streaming, front panel jack reassignment Supports playback up to 24-bit/192 kHz Functions |
| Network interface | 1 x 10/100/1000 Mbit/s |
| Network interface | 1 x Realtek 1Gb Ethernet |
| USB ports at back panel | 6 |
| USB ports on motherboard | 6 |
| Number of USB 3.0 ports | 6 |
| Number of USB 3.1 ports | 0 |
| FireWire (IEEE 1394) | No |
| COM connector / port | Yes |
| LPT connector / port | No |
| External connectors | 1 x PS/2 Keyboard/MouseCombo |
| External connectors | 4 x USB 3.0 |
| External connectors | 1 x Przycisk Clear CMOS |
| External connectors | 1 x HDMI |
| External connectors | 1 x Line In |
| External connectors | 1 x Line Out |
| External connectors | 1 x MIC |
| External connectors | 1 x RJ-45 |
| External connectors | 2 x USB 2.0 |
| External connectors | 1 x D-Sub |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 1 x Serial port header |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 1 x 4pin Chassis fan |
| Onboard connectors | 1 x 8pin 12V power |
| Onboard connectors | 1 x 24pin ATX power supply |
| Onboard connectors | 1 x M.2 |
| Onboard connectors | 4 x SATA III 6Gb/s |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Onboard connectors | 1 x USB 3.0 header |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x S/PDIF Out header |
| Onboard connectors | 1 x RGB LED strip header |
| Special functions | |
| bios | 128 Mb Flash ROM, UEFI AMI BIOS |
| form factor | micro ATX |
| dimensions | 22.6 cm x 20.3 cm |
| Accessories included | 2 SATA 6 Gb/s cables 1 x I/O Shield 1 x M.2 anchor 1 x User Manual |
| Supported operating systems | Windows 10 |
| software | ASUS Exclusive SoftwareArmoury CrateAI Suite 3- Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert- EZ updateASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRAR |
| Other information |
Warranty period 36 months
