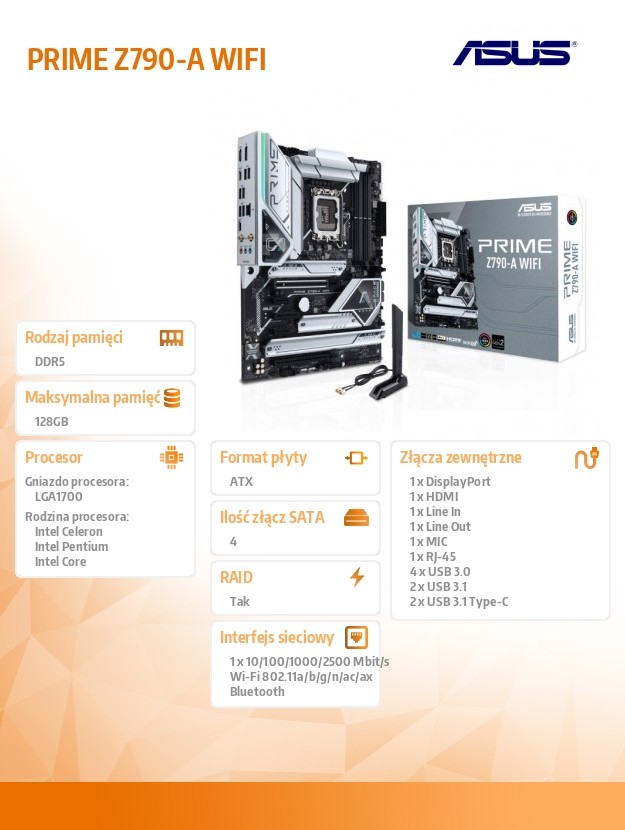

ASUS PRIME Z790-A WIFI s1700 4DDR5 HDMI/DP ATX

Product images are illustrative. The original product may vary, so please refer to the product specifications in the product description.

In stock

Price

€ 281.00

The e-shop price may differ with shops price.

Free shipping

Points +281

Instalments

from € 7.95 /per month
from € 7.95 /per month

Product details

EAN	4711081939320
Description	Socket Intel LGA 1700: Ready for 12th and 13th generation Intel processors Comprehensive cooling: large VRM heatsinks, M.2 heatsinks, hybrid fan blades and Xpert 4 fan Next-Gen: DDR5 Memory, PCIe 5.0, Intel
Model	PRIME Z790-A WIFI
CPU socket	LGA1700

Show all details

Processor family	Intel Celeron
Processor family	Intel Core
Processor family	Intel Pentium
Integrated CPU	No
Chipset manufacturer	Intel
chipset type	Intel Z790 Chipset
memory type	DDR5
Number of DDR5 slots	4
Memory bus frequency	4800 MHz
Memory bus frequency	5000 MHz
Memory bus frequency	5200 MHz
Memory bus frequency	5400 MHz
Memory bus frequency	5600 MHz
Memory bus frequency	5800 MHz
Memory bus frequency	6000 MHz
Memory bus frequency	6200 MHz
Memory bus frequency	6400 MHz
Memory bus frequency	6600 MHz
Memory bus frequency	6800 MHz
Memory bus frequency	7000 MHz
max memory size	128
expansion slots	1 x PCIe 4.0 x 4
expansion slots	1 x PCIe 4.0 x 16
expansion slots	2 x PCIe 3.0 x 1
expansion slots	1 x PCIe 5.0 x 16
Max. number of ATA devices	0
Max. number of SATA devices	4
raid	Yes
Detailed data on disk/drive interfaces	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* 13th and 12th generation Intel processors M.2_1 slot (M key), type 2242/2260/2280/22,110 (supports PCIe 4.0 x4 mode) Intel Z790 chipset
Type of integrated graphics card	1 x DisplayPort 1 x HDMI connector* Support up to 8K@60Hz as per DisplayPort 1. 4. *4K@60Hz support as defined in HDMI 2. 1.
Sound card	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Network interface	1 x 10/100/1000/2500 Mbit/s
Network interface	Wi-Fi 802.11a/b/g/n/ac/ax
Network interface	Bluetooth
Network interface	ASUS LANGuard WiFi 6E 2x2 WiFi 6 (802.11 a/b/g/n/ac/ax) Supports the 2.4/5/6GHz frequency band Bluetooth v5.3* * WiFi 6E 6GHz regulations may vary by country. *
USB ports at back panel	8
USB ports on motherboard	7
Number of USB 3.0 ports	6
Number of USB 3.1 ports	5
FireWire (IEEE 1394)	No
COM connector / port	Yes
LPT connector / port	No
External connectors	1 x RJ-45
External connectors	4 x USB 3.0
External connectors	1 x MIC
External connectors	1 x DisplayPort
External connectors	1 x HDMI
External connectors	1 x Line In
External connectors	1 x Line Out
External connectors	2 x USB 3.1 Type-C
External connectors	2 x USB 3.1
Onboard connectors	1 x Clear CMOS button
Onboard connectors	1 x USB C
Onboard connectors	1 x System panel header
Onboard connectors	4 x 4pin Chassis fan
Onboard connectors	2 x 8pin 12V
Onboard connectors	2 x USB 2.0/1.1 header
Onboard connectors	1 x USB 3.0 header
Onboard connectors	1 x Thunderbolt header
Onboard connectors	4 x M.2
Onboard connectors	4 x SATA III 6Gb/s
Onboard connectors	1 x Serial port header
Onboard connectors	1 x 4pin CPU fan
Special functions
bios	256 Mb Flash ROM, UEFI AMI BIOS
form factor	ATX
dimensions	30.5 x 24.4 cm
Accessories included
Supported operating systems	Windows 11
Supported operating systems	Windows 10
software
Other information
