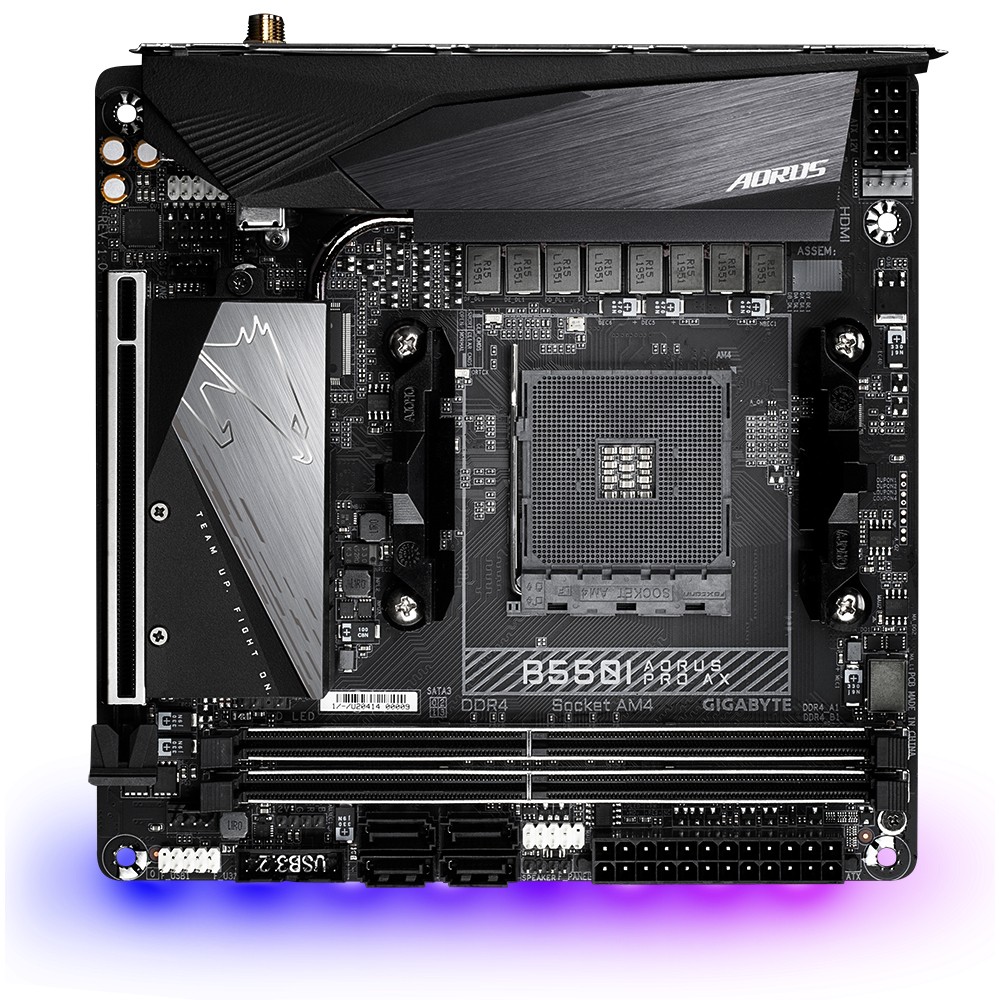

GIGABYTE B550I AORUS PRO AX AM4 2DDR4 HDMI/DP mITX
Product images are illustrative. The original product may vary, so please refer to the product specifications in the product description.
In stock
Price
€ 157.30The e-shop price may differ with shops price.
Instalments
from € 4.45 /per month
from € 4.45 /per month
Product details
EAN | 4719331809508 |
Description | AMD B550 Mini-ITX AORUS Motherboard with Direct 8 Phase Digital VRM, Advanced Thermal Design with Extended VRM Heatsink, Thermal Backplane, Dual PCIe 4.0/3.0 M.2 with Heat Shield, Intel WiFi 6 802.11ax, 2, |
Model | B550I AORUS PRO AX |
CPU socket | Socket AM4 |
Processor family | AMD Ryzen 5 |
Processor family | AMD Ryzen 7 |
Processor family | AMD Athlon |
Processor family | AMD Ryzen 3 |
Processor family | Non-CPU |
Processor family | AMD Ryzen 9 |
Integrated CPU | No |
Chipset manufacturer | AMD |
chipset type | AMD B550 |
memory type | DDR4 |
Number of DDR4 slots | 2 |
Memory bus frequency | 4266 MHz |
Memory bus frequency | 4400 MHz |
Memory bus frequency | 3400 MHz |
Memory bus frequency | 4600 MHz |
Memory bus frequency | 4800 MHz |
Memory bus frequency | 4133 MHz |
Memory bus frequency | 3866 MHz |
Memory bus frequency | 4000 MHz |
Memory bus frequency | 3733 MHz |
Memory bus frequency | 3600 MHz |
Memory bus frequency | 3466 MHz |
Memory bus frequency | 3200 MHz |
Memory bus frequency | 2933 MHz |
Memory bus frequency | 2667 MHz |
Memory bus frequency | 2400 MHz |
Memory bus frequency | 2133 MHz |
Memory bus frequency | 5100 MHz |
Memory bus frequency | 5200 MHz |
max memory size | 64 |
expansion slots | 2 x M.2 |
expansion slots | 1 x PCIe x 16 |
Max. number of SATA devices | 4 |
Max. number of ATA devices | 0 |
raid | Yes |
Detailed data on disk/drive interfaces | 1 x PCI Express x16 slot, integrated in the CPUAMD Ryzen 5000 Series and Ryzen 3000 Series Processors support PCIe 4.0 x16 modeAMD Ryzen Ryzen 5000 G-Series and Ryzen 4000 G-Series Processors support PCIe 3.0 x16 mode 1 x M.2 co |
Type of integrated graphics card | 1 x DisplayPort, supporting a maximum resolution of 5120x2880 @ 60Hz * Supports DisplayPort 1.4, HDCP 2.3 and HDR. 2 HDMI ports supporting a maximum resolution of 4096x2160 @ 60Hz * Support HDMI 2.1, HDCP 2 version. |
Sound card | Realtek ALC1220-VB codec * The line-out jack on the rear panel supports DSD audio. High-Resolution Audio support 2/4/5.1/7.1 - channel sound card (to configure 7.1 audio channels use PLN |
Network interface | 1 x 10/100/1000/2500 Mbit/s |
Network interface | Wi-Fi 802.11a/b/g/n/ac/ax |
Network interface | Bluetooth |
Network interface | Realtek 2.5GbE LAN chip (2.5Gbit/1Gbit/100Mbit) Intel WiFi 6 AX200. WIFI a, b, g, n, ac with wave 2, ax functions, support 2.4/5GHz dual band Bluetooth 5 Supports 11ax 160MHz wireless and gps |
USB ports at back panel | 6 |
USB ports on motherboard | 4 |
Number of USB 3.0 ports | 6 |
Number of USB 3.1 ports | 2 |
FireWire (IEEE 1394) | No |
COM connector / port | No |
LPT connector / port | No |
External connectors | 1 x USB 3.1 |
External connectors | 1 x Line Out |
External connectors | 1 x MIC |
External connectors | 1 x RJ-45 |
External connectors | 4 x USB 3.0 |
External connectors | 2 x HDMI |
External connectors | 1 x Line In |
External connectors | 1 x DisplayPort |
External connectors | 1 x USB 3.1 Type-C |
External connectors | 2 x SMA |
External connectors | 1 x Q-Flash Plus button |
Onboard connectors | 1 x USB 3.0 header |
Onboard connectors | 1 x TPM header |
Onboard connectors | 1 x 4pin CPU fan |
Onboard connectors | 2 x 4pin Chassis fan |
Onboard connectors | 1 x 8pin 12V power |
Onboard connectors | 1 x 24pin ATX power supply |
Onboard connectors | 2 x M.2 |
Onboard connectors | 4 x SATA III 6Gb/s |
Onboard connectors | 1 x USB 2.0/1.1 header |
Onboard connectors | 1 x System panel header |
Onboard connectors | 1 x Front panel audio header |
Onboard connectors | 1 x Clear CMOS jumper |
Special functions | Wsparcie dla APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Obsługa @ BIOS EasyTuneFast Boo |
bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
form factor | mini ITX |
dimensions | 17 x 17 cm |
Accessories included | |
Supported operating systems | Windows 11 |
Supported operating systems | Windows 10 |
software | Norton Internet Security (wersja OEM) XSplit Gamecaster + Broadcaster (12 months license) Realtek 8125 Gaming LAN Bandwidth Control Utility |
Other information | Voltage detection Temperature detection Fan speed detection Overheating warning Fan failure warning Fan speed control * Whether the controllable function |
Warranty period 36 months
