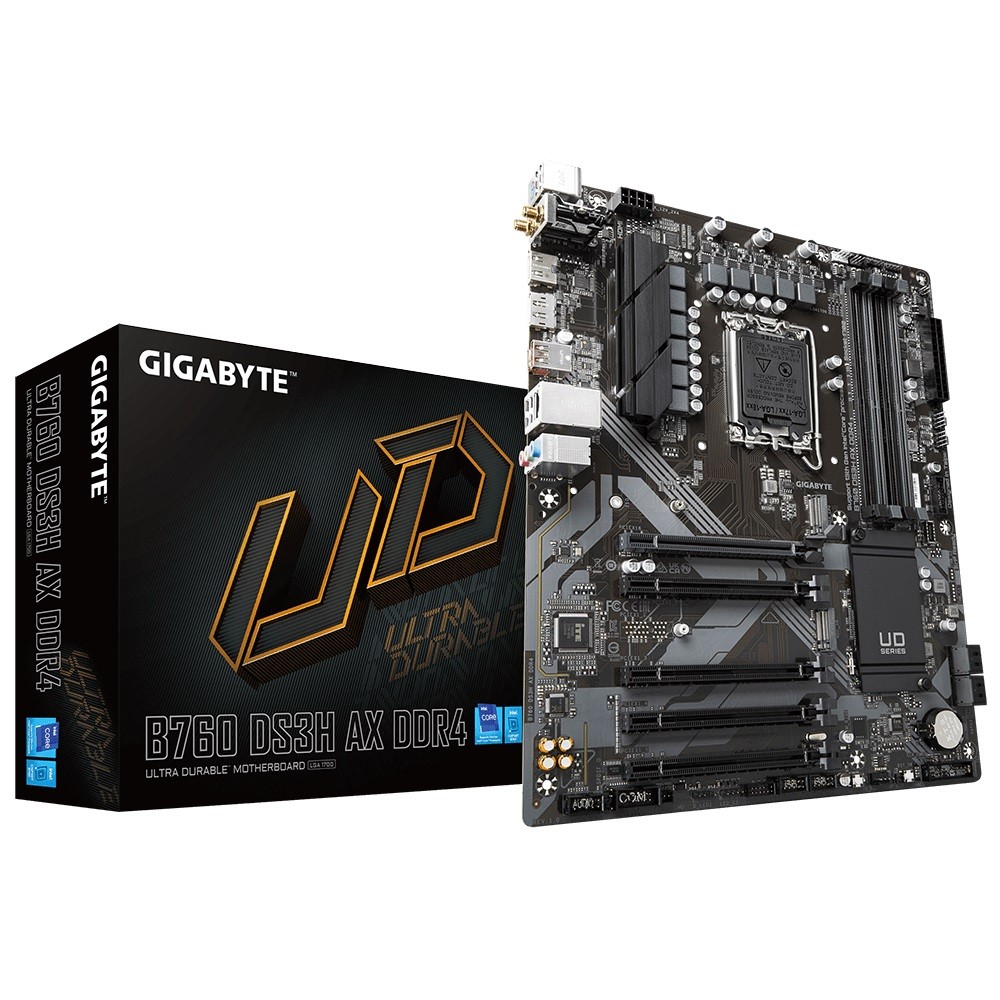

GIGABYTE Motherboard B760 DS3H AX DDR4 s1700 4DDR4 DP/HDMI ATX
Product images are illustrative. The original product may vary, so please refer to the product specifications in the product description.
In stock
Price
€ 132.40The e-shop price may differ with shops price.
Points
+132
Product details
| EAN | 4719331850999 |
| Description | |
| Model | B760 DS3H AX DDR4 |
| CPU socket | LGA1700 |
| Processor family | Intel Core i9 |
| Processor family | Intel Core i3 |
| Processor family | Intel Core i5 |
| Processor family | Intel Core i7 |
| Processor family | Intel Pentium Gold |
| Processor family | Intel Celeron |
| Integrated CPU | No |
| Chipset manufacturer | Intel |
| chipset type | Intel B760 Express Chipset |
| memory type | DDR4 |
| Number of DDR4 slots | 4 |
| Memory bus frequency | 5333 MHz |
| Memory bus frequency | 5133 MHz |
| Memory bus frequency | 5000 MHz |
| Memory bus frequency | 2666 MHz |
| Memory bus frequency | 2933 MHz |
| Memory bus frequency | 3333 MHz |
| Memory bus frequency | 3400 MHz |
| Memory bus frequency | 3466 MHz |
| Memory bus frequency | 3600 MHz |
| Memory bus frequency | 3666 MHz |
| Memory bus frequency | 3733 MHz |
| Memory bus frequency | 3800 MHz |
| Memory bus frequency | 3866 MHz |
| Memory bus frequency | 4000 MHz |
| Memory bus frequency | 4133 MHz |
| Memory bus frequency | 4266 MHz |
| Memory bus frequency | 4300 MHz |
| Memory bus frequency | 4400 MHz |
| Memory bus frequency | 4500 MHz |
| Memory bus frequency | 4600 MHz |
| Memory bus frequency | 4700 MHz |
| Memory bus frequency | 4800 MHz |
| Memory bus frequency | 4933 MHz |
| Memory bus frequency | 3000 MHz |
| Memory bus frequency | 3200 MHz |
| Memory bus frequency | 3300 MHz |
| Memory bus frequency | 2400 MHz |
| Memory bus frequency | 2133 MHz |
| max memory size | 128 |
| expansion slots | 1 x PCIe 4.0 x 16 |
| expansion slots | 4 x PCIe 3.0 x 16 |
| Max. number of SATA devices | 4 |
| raid | Yes |
| Detailed data on disk/drive interfaces | Processor: 1 x M.2 (Slot 3, Key M, support 22110/2280 PCIe 4.0 x4/x2 SSD) (M2A_CPU) chipset: 1 x M.2 (Slot 3, Key M, support 2280 PCIe 4.0 x4/x2 SSD) (M2P_SB) 4 SATA 6Gb/s connectors |
| Type of integrated graphics card | Integrated Graphics Processor - Intel HD Graphics Support: HDMI port supporting a maximum resolution of 4096x2160 @ 60Hz - Supports HDMI 2.0 and HDCP 2.3. DisplayPort, supporting a maximum resolution of 4096x2304 |
| Sound card | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel S/PDIF out |
| Network interface | 1 x 10/100/1000 Mbit/s |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax |
| Network interface | Bluetooth |
| Network interface | LAN: Realtek GbE LAN chip (1Gbps/100Mbps) Wireless communication: AMD WiFi 6E RZ608 (MT7921K) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6GHz carrier frequency bands BLUETOOTH 5.2 service |
| USB ports at back panel | 6 |
| USB ports on motherboard | 7 |
| Number of USB 3.0 ports | 2 |
| Number of USB 3.1 ports | 3 |
| FireWire (IEEE 1394) | No |
| COM connector / port | Yes |
| LPT connector / port | No |
| External connectors | 1 x HDMI |
| External connectors | 1 x PS/2 Keyboard/MouseCombo |
| External connectors | 1 x DisplayPort |
| External connectors | 1 x MIC |
| External connectors | 1 x RJ-45 |
| External connectors | 4 x USB 2.0 |
| External connectors | 1 x USB 3.1 |
| External connectors | 1 x USB 3.1 Type-C |
| External connectors | 2 x SMA |
| External connectors | 1 x Line In |
| External connectors | 1 x Line Out |
| Onboard connectors | 1 x Q-Flash Plus button |
| Onboard connectors | 1 x Reset button |
| Onboard connectors | 1 x S/PDIF Out header |
| Onboard connectors | 1 x USB C |
| Onboard connectors | 1 x Serial port header |
| Onboard connectors | 1 x Clear CMOS jumper |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 1 x 4-pin water-pump-fan |
| Onboard connectors | 1 x 8pin 12V power |
| Onboard connectors | 1 x 24pin ATX power supply |
| Onboard connectors | 2 x M.2 |
| Onboard connectors | 4 x SATA III 6Gb/s |
| Onboard connectors | 4 x USB 2.0/1.1 |
| Onboard connectors | 2 x USB 3.0 header |
| Onboard connectors | 3 x 4pin Chassis fan |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Onboard connectors | 2 x RGB LED Strip |
| Onboard connectors | 2 x Addressable LED |
| Special functions | GIGABYTE Control Center (GCC) support Q Flash support Q-Flash Plus support |
| bios | 1 x 128 Mbit flash Using a licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| form factor | ATX |
| dimensions | 30.5 x 24.4 cm |
| Accessories included | |
| Supported operating systems | Windows 11 |
| Supported operating systems | Windows 10 |
| software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Other information |
Warranty period 36 months
