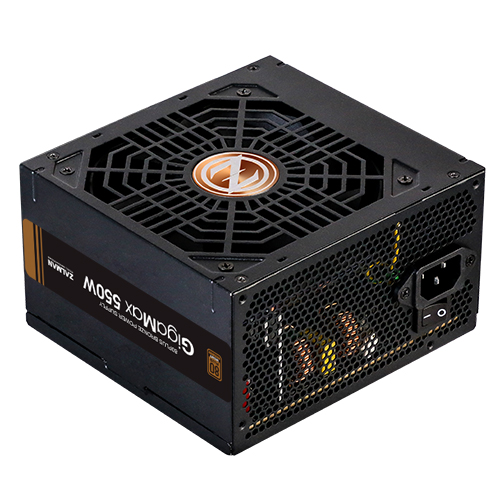

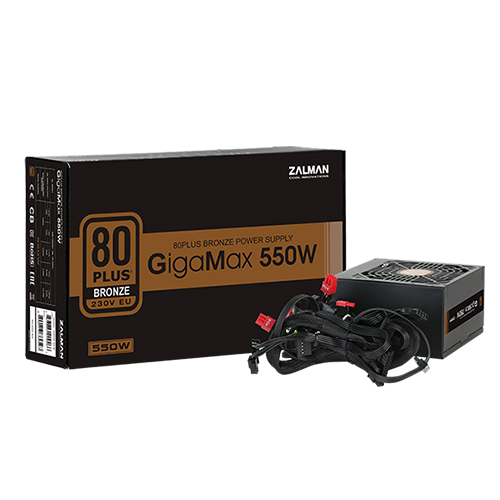

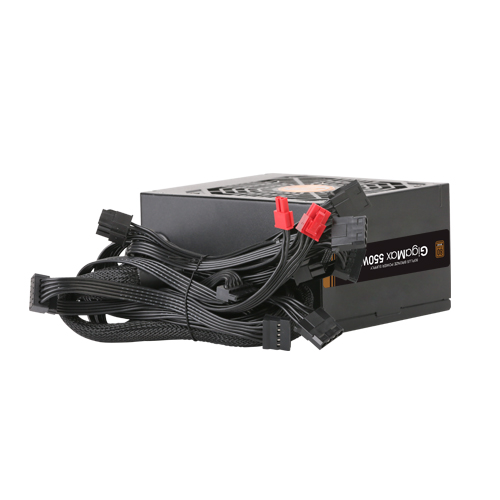

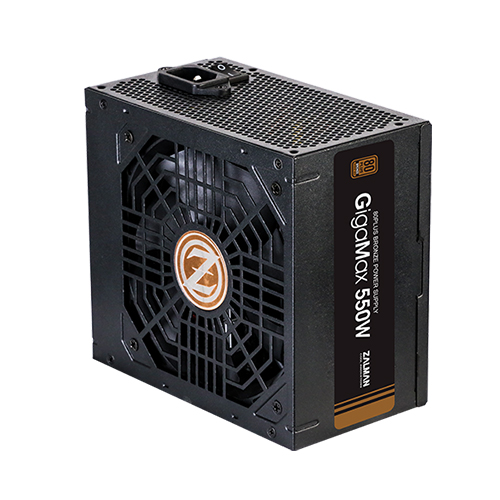

Zalman GigaMax 550W 80+Bronze (T-MLX46384)
Product images are illustrative. The original product may vary, so please refer to the product specifications in the product description.
Price
€ 65.10The e-shop price may differ with shops price.
Points
+65
Delivery time and options
-
2-5 days -
2-5 days -
2-5 days -
2-5 days -
2-5 days
Product description
80 Plus Bronze 230V EU certified Power Supply Unit. It supplies smooth power to the PC while reducing unnecessary power consumption by using high-performance parts that are very durable and reliable. Power Total power: 550 W AC input voltage: 220 - 240 V AC input frequency: 50 - 63 Hz Input current: 6 A Power factor: 99 Combined power (+3.3V): 100 W Combined power (-12V): 3.6 W Power Factor Correction (PFC) type: Active Combined power (+12V): 540 W Combined power (+5V): 100 W Combined power (+5Vsb): 12.5 W Max output current (+5Vsb): 2.5 A Max output current (+3.3V): 18 A Max output current (+12V): 45 A Max output current (-12V): 0.3 A Max output current (+5V): 15 A Efficiency: 85% Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage Ports & interfaces Number of SATA power connectors: 2 Peripheral (Molex) power connectors (4-pin): 1 Motherboard power cable length: 55 cm PCI Express power connectors (6+2 pin): 2 CPU power connector (4+4 pin): Y SATA power cable length: 400 mm Peripheral (Molex) power cable length: 400 mm PCI Express connector: Y PCI Express power cable length: 50 cm Cabling type: Non-Modular Motherboard power connector: 20+4 pin ATX CPU power cable length: 65 cm ATX power connector (20+4 pin): Y Performance Mean time between failures (MTBF): 100000 h 80 PLUS certification: 80 PLUS Bronze Supported motherboard form factors: ATX, micro ATX, Mini-ITX Purpose: PC Bearing technology: FDB Power supply unit (PSU) form factor: ATX Safety: CB, CE, KC, EAC, RoHS Certification: 80 Plus, CB, CE, KC, EAC, RoHS Country of origin: China Design Colour of product: Black Cooling type: Active Fan diameter: 12 cm Number of fans: 1 fan(s) Fan location: Top On/off switch: Y Tehniskās detaļas Sustainability certificates: RoHS Operational conditions Operating temperature (T-T): 0 - 40 °C Storage relative humidity (H-H): 5 - 95% Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 5 - 85% Weight & dimensions Width: 140 mm Depth: 150 mm Height: 86 mm Weight: 1.95 kg Packaging data Package type: Box Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
