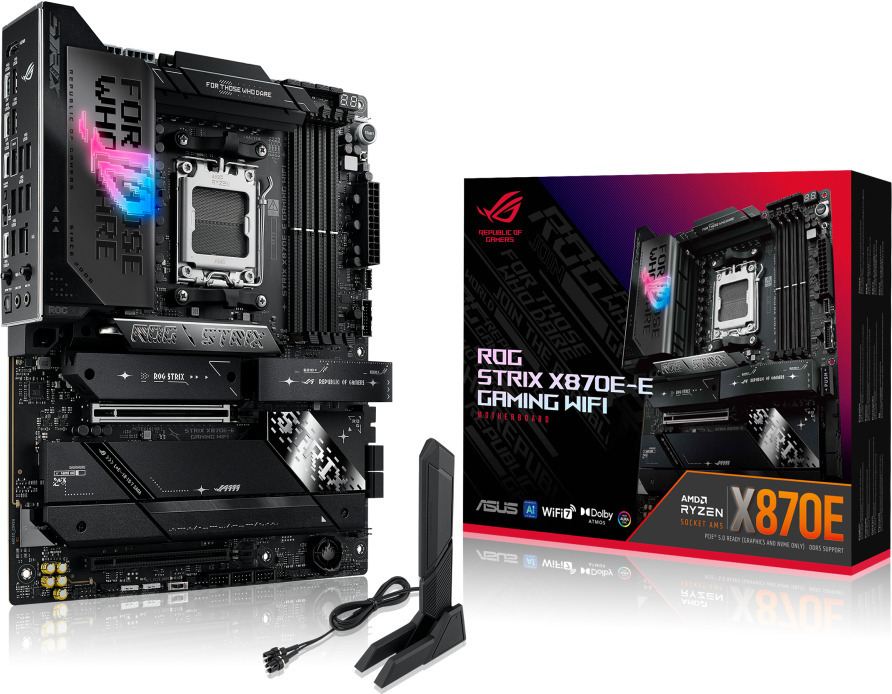

ASUS ROG STRIX X870E-E GAMING WIFI ATX -emolevy (90MB1IB0-M0EAY0)

ROG Strix X870E-E Gaming WiFi is designed to harness the full power of AMD Ryzen 9000 series processors. It offers PCIe 5.0 support and advanced AI features such as AI overclocking, AI Cooling II, AI Networking II and AEMP to make setup easy and maximize performance. Dual USB4 Type-C ports and WiFi 7 together with Realtek 5Gb Ethernet ensure excellent connectivity, while powerful cooling elements keep M.2 drives cool even under heavy load. This motherboard meets the needs of demanding gamers and professionals, providing the power and connectivity needed for advanced AI PC applications.

18+2+2 power stages ensure even and efficient power distribution, especially for overclocking.

AI Networking II and AI Overclocking make performance optimization easy, providing automatic tweaks and real-time performance fine-tuning.

AI Cooling II and one-button fan control ensure quiet and optimized cooling with a single click, keeping your system cool even under heavy load.

DDR5 memory support allows up to 192GB of memory to be installed on the motherboard, and AEMP profiles help unlock the full potential of memory.

PCIe Gen 5 support provides maximum storage speed and hardware expansion capabilities.

WIFI 7 ensures lightning-fast wireless connectivity.

USB4 interfaces deliver next-generation data transfer speeds.

Features:

• Chipset: AMD X870E
• Processor Core: AM5
• Processor Support: AMD Ryzen 7000 / 8000 / 9000 series
• Memory board size: ATX (30.5 cm x 24.4 cm)
• Memory slots (pcs): 4
• Memory type: DDR5 (8000+MT/s(OC) on Ryzen 9000 series processors, 8400+MT/s(OC) on Ryzen 8000 series processors, 8000+MT/s(OC) on Ryzen 7000 series processors), ECC, Non-ECC, Un-buffered, Dual Channel
• Memory max (GB): 192
• Network interfaces: Realtek 5Gb Ethernet, 2x2 Wi-Fi 7 (802.11be), Bluetooth v5.4
• Wall card: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Expansion slots:

• AMD Ryzen 9000 & 7000 series processors
  1 x PCIe 5.0 x16 slot (supports x16 mode)
• AMD Ryzen 8000 series processors
  1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• AMD X870E Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)

Hard disk interfaces:

• 4 x SATA 6Gb/s ports
• AMD Ryzen 9000 & 7000 series processors
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• AMD Ryzen 8000 series processors
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
  M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)
• AMD X870E Chipset
  M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Backplane interfaces:

• 2 x USB4 (40Gbps) ports (2 x USB Type-C)
• 1 x USB 20Gbps port (1 x USB Type-C with up to 30W PD Fast-charge)
• 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C)
• 1 x HDMI port
• 1 x Wi-FiFi Module
• 1 x Realtek 5Gb Ethernet
• 2 x Gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button


Internal connections:

• Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  5 x 4-pin Chassis Fan headers
• Power related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connectors
• Storage related
  5 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
• USB
  2 x USB 20Gbps connectors (support USB Type-C)
  2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  3 x USB 2.0 headers support 6 additional USB 2.0 ports
• Miscellaneous
  3 x Addressable Gen 2 headers
  1 x CPU Over Voltage jumper
  1 x FlexKey button
  1 x Front Panel Audio header (F_AUDIO)
  1 x Start button
  1 x 10-1 pin System Panel header
  1 x Thermal Sensor header
