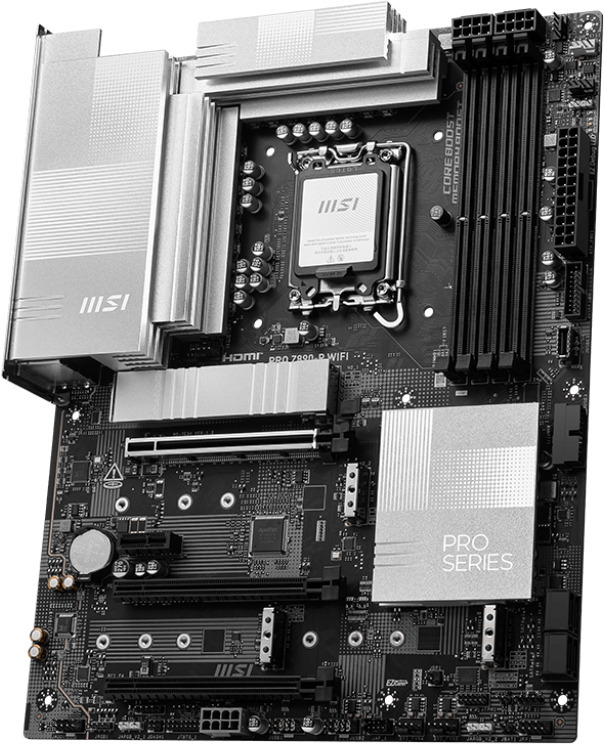

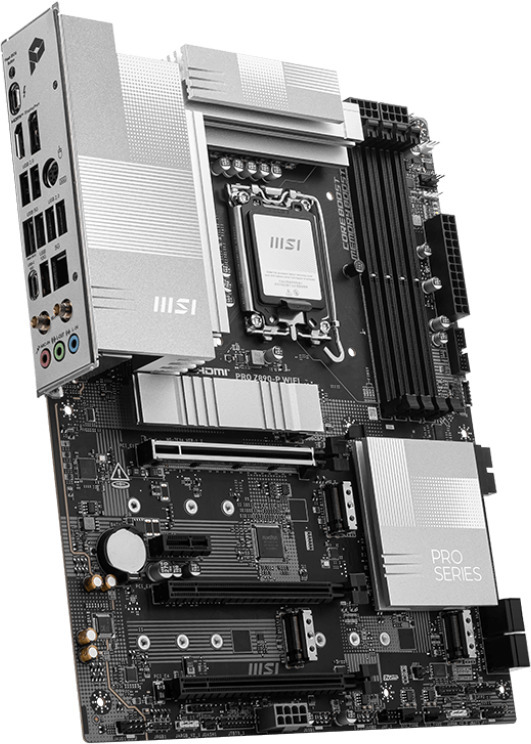

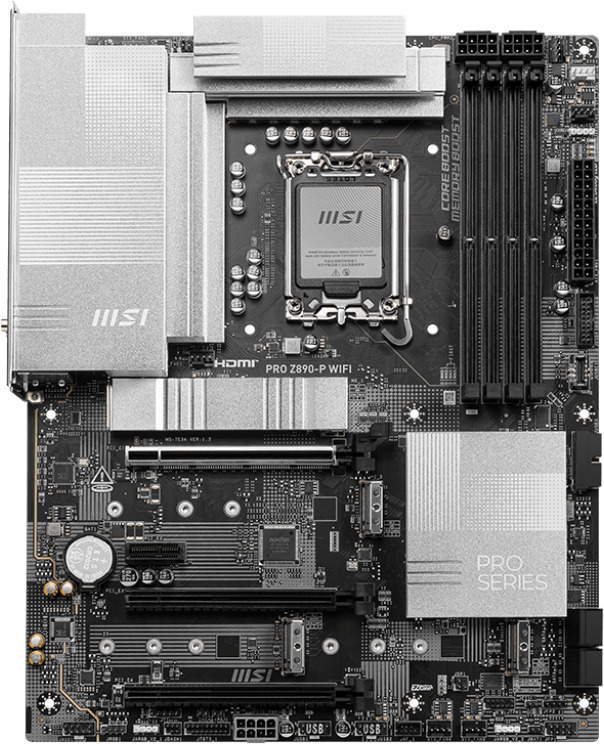

MSI PRO Z890-P WIFI ATX emaplaat (911-7E34-001)

PRO Z890-P WIFI offers a simple design and harmonious silver colour scheme that blends elegantly with both white and black PC configurations. The motherboard features several of MSI's top features, including Wi-Fi 7 with EZ antennas, 5G LAN, PCIe 5.0 M.2, EZ M.2 Shield Frozr II and additional PCIe power transfer. The PRO Z890-P WIFI is fully ready for Intel Core Ultra (Series 2) series CPUs.

PRO series is designed for professionals of all levels who value performance and quality. The series supports productivity and efficiency, and is a reliable choice for demanding multitasking.

- Supports Intel Core Ultra (Series 2) series processors.

- Supports DDR5 memory, dual channel DDR5 9200+ MT/s (OC).

- Ultra performance: 14+1+1+1 Duet Rail power supply system, Core Boost and 8-layer thick copper PCB with server-grade materials.

- Frozr Guard: Enhanced heat sink with heat pipes, MOSFET heat pads, accessory heat pads and M.2 Shield Frozr for high performance and uninterrupted gaming experience

- Lightning fast gaming experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2.

- Ultra connectivity: Thunderbolt 4, 5G LAN and Wi-Fi 7 solution provide secure, stable and fast network and data connectivity.

- Audio Boost: Studio-class audio quality for the most immersive gaming experience.

Specifications:

• Chipset: Intel Z890
• Processor Core: LGA 1851
• Processor Support: Intel Core Ultra (Series 2)
• Memory Board Size: ATX (243.84 x 304.8 mm)
• Memory slots (pcs): 4
• Memory type: DDR5 (9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s), Intel XMP 3.0, Non-ECC, Dual Channel, Un-buffered
• Memory max (GB): 256
• Networking interfaces: 1 x Realtek 8126VB 5G LAN, WiFi 7 (802.11 a/b/g/n/ac/ ax/ be), Bluetooth 5.4
• Wire Card: Realtek ALC897 Codec, 7.1-Channel USB High-Definition Audio

Expansion Slots

• 3 x PCI-E x16 slot
• 1 x PCI-E x1 slot
  PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
  PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)


Hard drive interfaces

• 4 x SATA 6G
• 4 x M.2
  M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
  M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices


Back Panel Connections

• DisplayPort
• Mouse/Keyboard
• 2 x USB 2.0
• 5G LAN
• Wi-Fi / Bluetooth
• 3 x Audio Connectors
• Flash BIOS Button
• Thunderbolt 4 40Gbps (Type-C)
• HDMI
• 2 x USB 2.0
• 2 x USB 5Gbps Type-A
• USB 10Gbps Type-C
• USB 10Gbps Type-A

Internal Connectors

• 2 x Thunderbolt5 card connector(JTBT5, support RTD3)
• 1 x Power Connector(ATX_PWR)
• 2 x Power Connector(CPU_PWR)
• 1 x Power Connector(PCIE_PWR 8pin)
• 1 x CPU Fan
• 1 x Combo Fan (Pump_Sys Fan)
• 5 x System Fan
• 2 x Front Panel (JFP)
• 1 x Chassis Intrusion (JCI)
• 1 x Front Audio (JAUD)
• 1 x Tuning Controller connector (JDASH)
• 3 x Addressable V2 RGB LED connector (JARGB_V2)
• 1 x RGB LED connector (JRGB)
• 1 x TPM pin header(Support TPM 2.0)
• 4 x USB 2.0 ports
• 4 x USB 5Gbps Type A ports
• 1 x USB 10Gbps Type C ports
