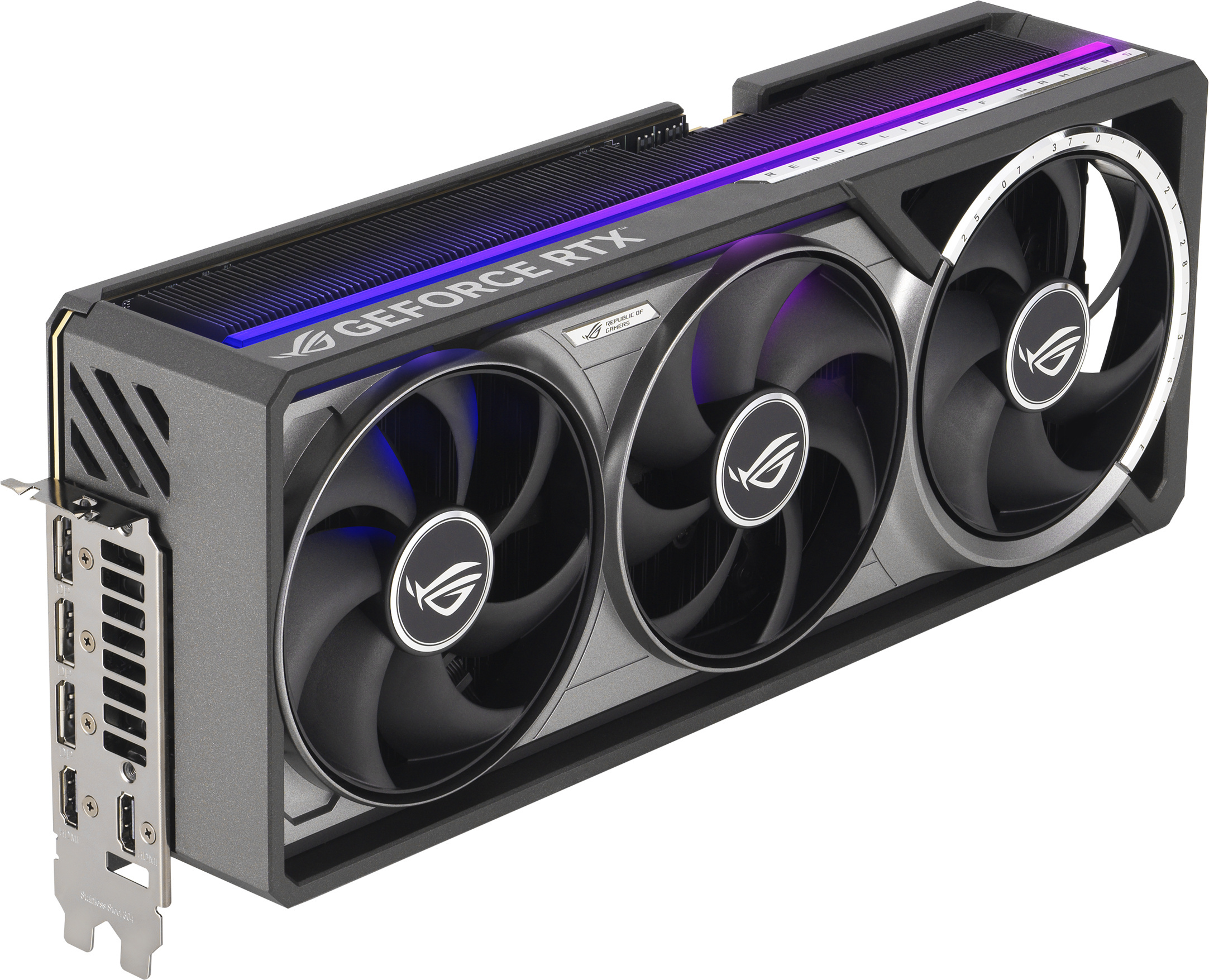

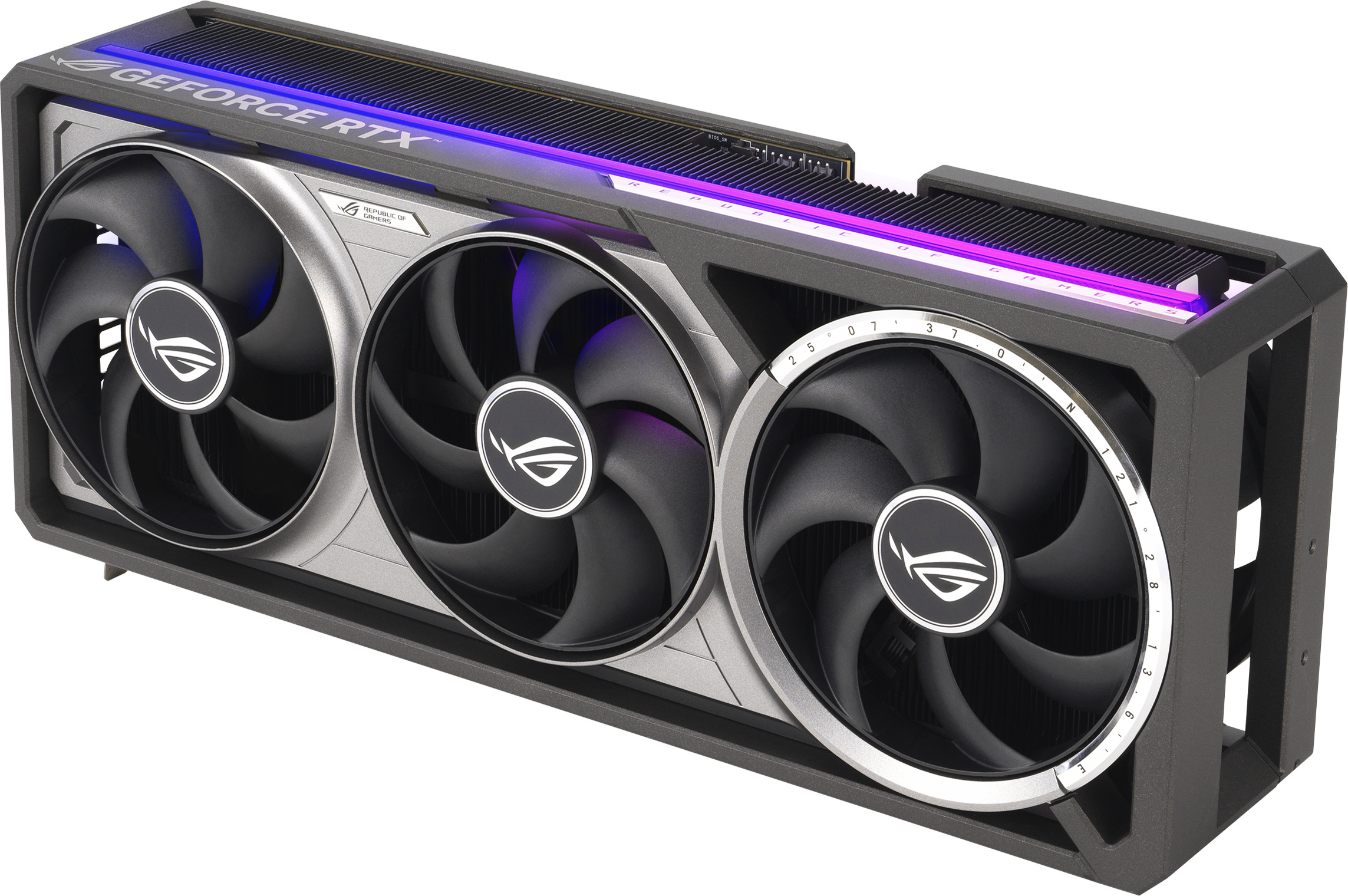

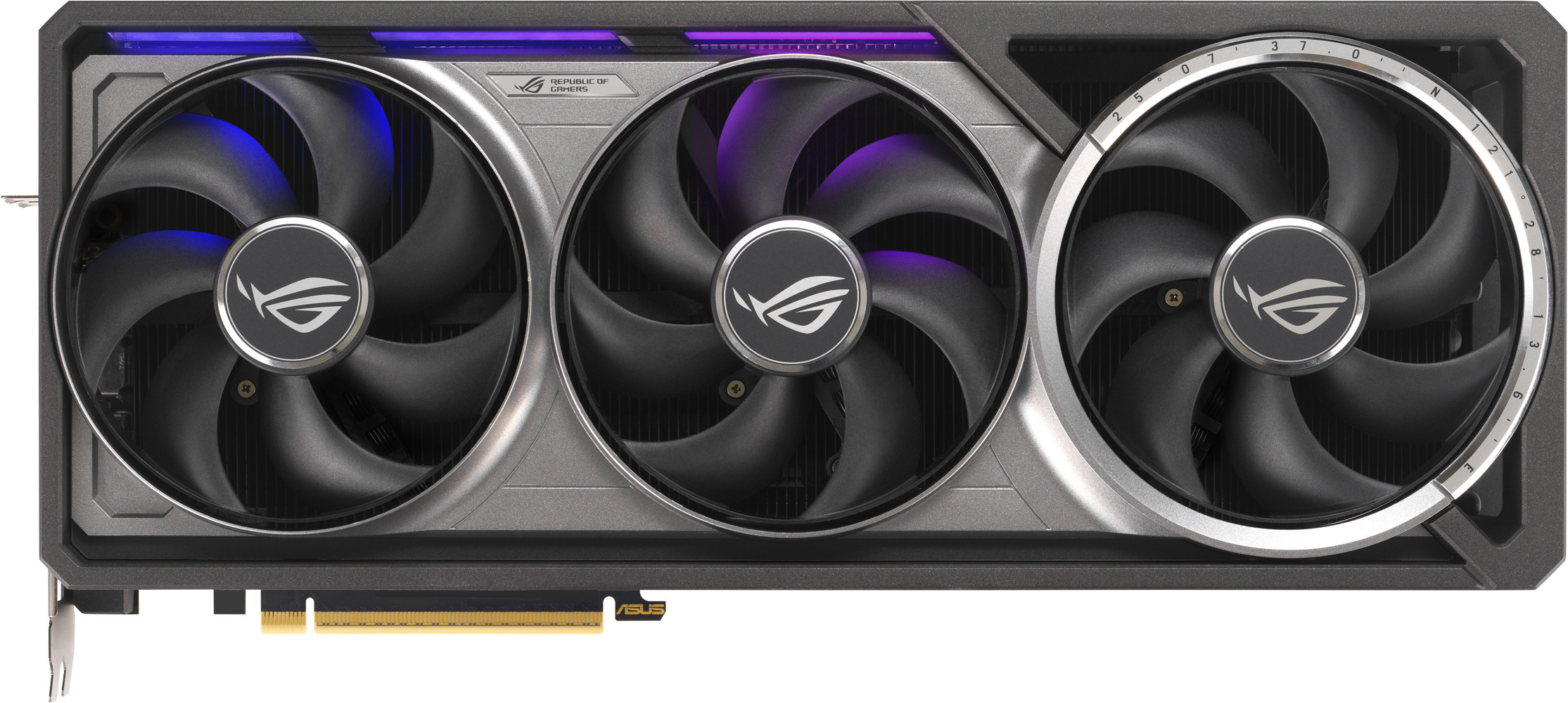

ASUS ROG Astral GeForce RTX 5080 16GB GDDR7 OC Edition graafikakaart (90YV0LV0-M0NA00)

Powered by NVIDIA Blackwell architecture and DLSS 4

ROG Astral GeForce RTX 5080 introduces ROG's first quad-core graphics card with a patented vapor chamber, higher density heat sinks, a staggered heat sink, blazing clock speeds, improved power delivery and more. These cutting-edge innovations, combined with a die-cast frame and metal bracket, ensure performance that will stand up to the most demanding gaming scenarios.

• Quad-Fan Force, the revolutionary four-fan design creates a powerful vertical airflow channel that increases air pressure by up to 20%. This results in premium thermal performance that significantly lowers graphics card temperatures and minimizes hot spots, enabling unprecedented clock speeds.

• Optimized fin spacing - the addition of a fourth fan allows for more densely packed heat sinks, increasing cooling potential.

• Patented steam chamber with milled paths allows eight heat pipes to sink without flattening, increasing heat transfer efficiency. This innovative combination maximizes contact area and improves thermal performance by more than 10%.

• Phase-switching GPU heat pad - By efficiently fusing the GPU to heat module interface, the premium phase-switching GPU heat pad provides excellent thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

• MaxContact design - MaxContact is ASUS' exclusive manufacturing technology that increases the surface area of the graphics card heat sink by 5% for improved thermal efficiency
• 3.8-seat design: massive heat sink and fin array optimized for airflow from four Axial-tech fans.
• GPU Guard technology securely protects the GPU from the four corners of the GPU, and the GPU bracket ensures a stable mount.
• An all-metal die-cast cover, chassis backplate and rear I/O bracket support the PCB for rigidity.
• Efficient 80-amp MOSFETs deliver more than 35% more headroom than the standard model. This helps ensure better performance, stability and greater overclocking potential.
• Protective PCB coating - a protective conformal coating surrounds the PCB to help protect against short circuits caused by moisture, dust or debris.
• Auto-Extreme Technology an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single operation. ASUS Auto-Extreme technology reduces thermal stress on components and avoids the use of harsh cleaning chemicals, reducing environmental impact, lowering manufacturing power consumption and making the overall product more reliable.
• VAutomatic Overclocking - GPU Tweak III lets you effortlessly fine-tune overclocking settings for peak performance. It includes OC mode and silent mode switches, an OC scanner and a voltage-to-frequency tuner for precise adjustments.
• Temperature Map - Embedded sensors in the VRM, chokes and memories collect data in a thermal map that allows you to check real-time temperatures in each area and easily adjust system settings for optimized performance.
• Power Detector+ - Power Detector+ can detect anomalies in any of the six power pins on the 12VHPWR cable. If a fault is detected, you'll be notified immediately so you can reinstall the power cable.
• Mileage - The Mileage feature tracks usage at different power levels, so you can keep track of the load you've been using over multiple gaming sessions.
• Direct Aura ARGB lighting on the ROG Astral GeForce RTX 5080 offers endless possibilities for personalization with color or functional effects. Use it with other Aura components to create a unique
• Perfect Power Supply for GeForce RTX 50 Series Combine with the ROG Thor III and ROG Strix Platinum series power supplies and enjoy reliable power for your graphics card. GPU-First improves voltage stability by up to 45% even during demanding gaming sessions and overclocking scenarios, helping ensure peak performance and a smoother gaming experience. In addition, the integration of GaN MOSFETs improves power consumption by up to 30%.

Specifications:

• Model: ROG Astral GeForce RTX 5080 16GB GDDR7 OC Edition
• Chip: NVIDIA GeForce RTX 5080
• CUDA cores: 10752
• AI Performance: TBD
• Clock Speed: TBD
• Memory: 16GB 256-bit GDDR7
• Memory Speed: 30 Gbps
• Bus: PCI Express 5.0
• Resolution: Digital Maximum Resolution 7680 x 4320
• OpenGL: OpenGL 4.6
• Interfaces: 2 x HDMI 2.1b, 3 x DisplayPort 2.1a
• HDCP Support: Yes (2.3)
• Maximum support for displays: 4
• AURA SYNC: ARGB
• Recommended power supply: 850 W
• Power connectors: 1 x 16-pin
• Dimensions: 357.6 x 149.3 x 76 mm, 3.8 slot
