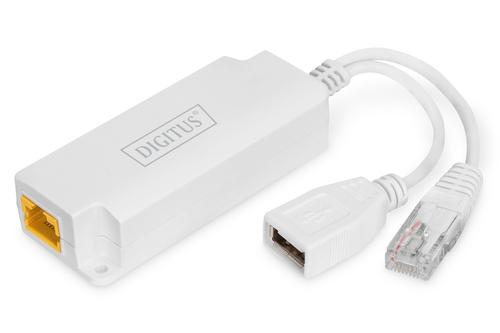

Digitus USB-A 5V PoE Splitter (DN-95208)

PoE splitter provides power 5Vdc, 2.5A(max) via USB-A Female connector and data signal at 10/100Mbps

- Provide USB 5V power by PoE splitter
- PoE Input :40-57Vdc PoE 802.3af/at
- USB Power Output: 5Vdc 2.5A(max)
- Data Output Speed: 10/100Mbps (RJ45)
- Wall-moutable
- IP40 rated Protection
- Power output Indicator : Green

DN-95208 is an indoor rated PoE USB-A splitter specially designed for complex backhaul and networking application. Enclosed in an IP40 fire retardant plastic case with compact design. It works as a converter to get power and data from PoE injector or PoE Switch of 802.3af/at over RJ45 connector then separate power and data to PDs.

The output power is 5Vdc, 2.5A(max) via USB-A Female connector to PDs. Such as power communication station, wireless APs, network cameras, Tablet PC, and other USB-A devices. PoE signal into a separate data signal at 10/100Mbps. For planning purposes, the effective distance is 100 meters
via Cat5e/Cat6 cables from Ethernet data source to PD.Digitus USB-A 5V PoE Splitter. Networking standards: IEEE 802.3at, Cabling technology: 10/100Base-T(X), Product colour: White. Width: 82.3 mm, Depth: 34.7 mm, Height: 19 mm. Quantity per pack: 1 pc(s). Package width: 165 mm, Package depth: 97 mm, Package height: 40 mm. Input voltage: 40 - 57 V, Output voltage: 5 V, Output current: 2.5 A
